Feed Wheels Parts View
Manual Parts > Feed Wheels
Use this page to identify feed wheel and related parts on Marsh manual stencil cutters.
This reference applies to Models R, S, H, and Q.
Focus on the feed wheel and drive components. These parts control material movement through the machine.
Other Parts Views
Feed Wheels Reference

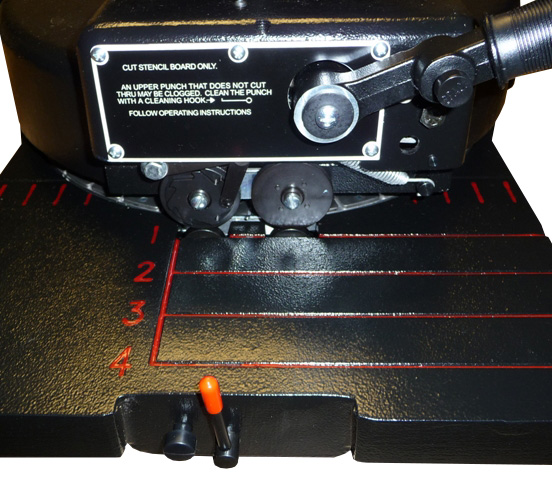

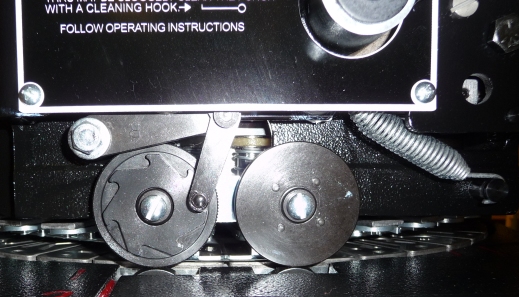

Use these images to identify the feed wheel area and compare what you see on your machine to the listed part numbers below.
Need another view? Go to Main Page, Name Plate Down, Top Cover, or Underside.
Feed Wheels Parts List
- RP01PL-H Plate, table (1/2")
- RP01PL-Q Plate, table (1/4")
- RP01PL-S Plate, table (3/4")
- RP01X-H Base, with shaft and plate (1/2")
- RP01X-Q Base, with shaft and plate (1/4")
- RP01X-R Base, with center shaft (1")
- RP01X-S Base, with shaft and plate (3/4")
- RP02-R Hood (1")
- RP02-SHQ Hood (1/4", 1/2", 3/4")
- RP06C-R Screw, Handle (Phillips)
- RP16G Cap, eccentric shaft handle (Red)
- RP16-R Shaft assy, eccentric (1")
- RP16-SHQ Shaft assy, eccentric (1/4", 1/2", 3/4")
- RP17 Button, release shaft
- RP20X-R Handle, assy operating (1")
- RP20X-SHQ Handle, assy operating (1/4", 1/2", 3/4")
- RP21 Washer
- RP22 Shaft, handle
- RP23LB-H Wheel assy, feed left (1/2")
- RP23LB-Q Wheel assy, feed left (1/4")
- RP23LB-R Wheel assy, feed left (1")
- RP23LB-S Wheel assy, feed left (3/4")
- RP23R Wheel, feed right
- RP25-H Cam assy, spacing (1/2")
- RP25-Q Cam assy, spacing (1/4")
- RP25-R Cam assy, spacing (1")
- RP25-S Cam assy, spacing (3/4")
- RP27944 Grip, Handle 7/8" Flangeless
- RP37S Spring, handle
Need Help Identifying a Part?
If you are not sure which part you need, contact us and reference this Feed Wheels view along with the machine model.
